FC51L08SFY3A - eMMC Flash Memory

ESMT

The FC51L08SFY3A by ESMT is a eMMC Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

FC51L08SFY3A eMMC Flash Memory by ESMT - Datasheet Preview — Official preview page of the **FC51L08SFY3A** eMMC Flash Memory datasheet (ESMT).

Datasheet Details

Part number	FC51L08SFY3A
Manufacturer	ESMT
File Size	724.40 KB
Description	eMMC Flash Memory
Datasheet	FC51L08SFY3A-ESMT.pdf
Additional preview pages of the FC51L08SFY3A datasheet.

FC51L08SFY3A Product details

Description

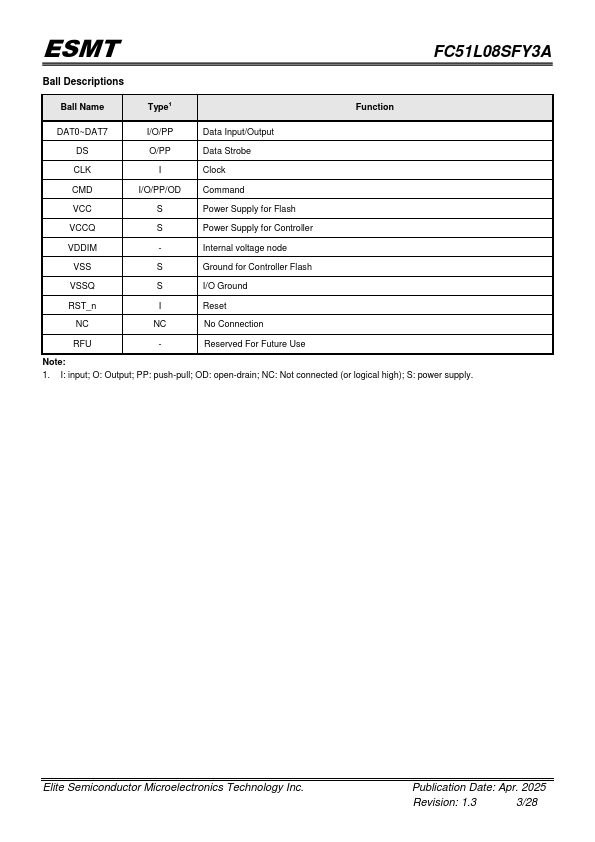

Ball Name Type1 Function DAT0~DAT7 I/O/PP Data Input/Output DS O/PP Data Strobe CLK I Clock CMD I/O/PP/OD Command VCC S Power Supply for Flash VCCQ S Power Supply for Controller VDDIM - Internal voltage node VSS S Ground for Controller Flash VSSQ S I/O Ground RST_n I Reset NC NC No Connection RFU - Reserved For Future Use Note: 1. I: input; O: Output; PP: push-pull; OD: open-drain; NC: Not connected (or logical high); S: power supply.Elite Semiconductor

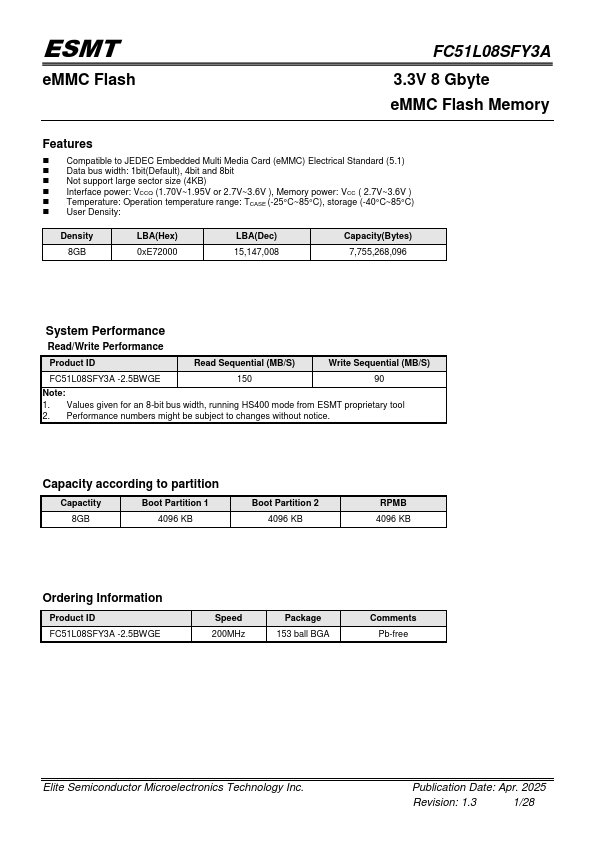

Features

Compatible to JEDEC Embedded Multi Media Card (eMMC) Electrical Standard (5.1).
Data bus width: 1bit(Default), 4bit and 8bit.
Not support large sector size (4KB).
Interface power: VCCQ (1.70V~1.95V or 2.7V~3.6V ), Memory power: VCC ( 2.7V~3.6V ).
Temperature: Operation temperature range: TCASE (-25°C~85°C), storage (-40°C~85°C).
User Density: Density 8GB LBA(Hex) 0xE72000 LBA(Dec) 15,147,008 Capacity(Bytes) 7,755,268,096 System Performance Read/Write Performa.
