ES9008 Datasheet - ESS

ES9008 Reference 8-Channel Audio DAC

Pin Name 1 VDD_L 2 DAC1 3 DAC1B 4 DAC3B 5 DAC3 6 AGND_L 7 AVCC_L 8 RESET 9 GND 10 AVCC_L 11 AGND_L 12 DAC5 13 DAC5B 14 DAC7B 15 DAC7 16 VDD_L 17 AVCC_L 18 AGND_L 19 GND 20 VDD 21 SDA 22 SCL 23 XO 24 XI (MCLK) 25 DVCC_B 26 LOCK 27 N.C. 28 N.C. 29 VDD 30 GND 31 AGND_R 32 AVCC_R 33 VDD_R 34 DAC8 35 DA.

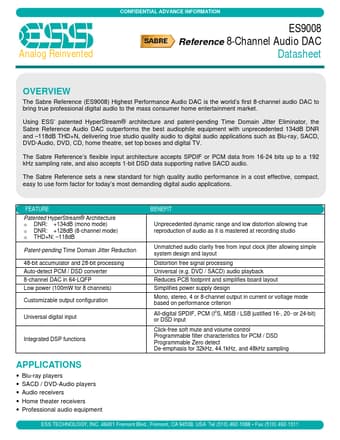

Analog Reinvented CONFIDENTIAL ADVANCE INFORMATION ES9008 Reference 8-Channel Audio DAC Datasheet OVERVIEW The Sabre Reference (ES9008) Highest Performance Audio DAC is the world’s first 8-channel audio DAC to bring true professional digital audio to the mass consumer home entertainment market. Using ESS’ patented HyperStream® architecture and patent-pending Time Domain Jitter Eliminator, the Sabre Reference Audio DAC outperforms the best audiophile equipment with unprecedented 134dB DNR and <.
