ES9033 Datasheet - ESS

ES9033 - 32-bit High-Performance 2-Channel DAC

Unprecedented dynamic range and ultra-low distortion Support for up to PCM 768kHz & DSD512 Reduced footprint and simplifies board layout PCM, TDM, DSD, DoP input data formats.

8 preset filters Configured by microcontroller or other I2C/SPI source, or pins through Hardware Mode Reduced BOM cost, PCB

Analog Reinvented ES9033 32-bit High-Performance 2-Channel DAC with Line Drivers Product Datasheet The Sabre ES9033 High Performance Audio DAC is a 32-Bit, 2-channel audio DAC that brings professional, digital audio quality to the consumer home entertainment market.

Using ESS’ patented HyperStream ® II architecture, the Sabre ES9033 delivers studio quality audio with 122dB DNR (w / DRE) and -108dB THD+N.

With the integrated line drivers, the ES9033 reduces BOM costs by eliminating the need for

ES9033-ESS.pdf

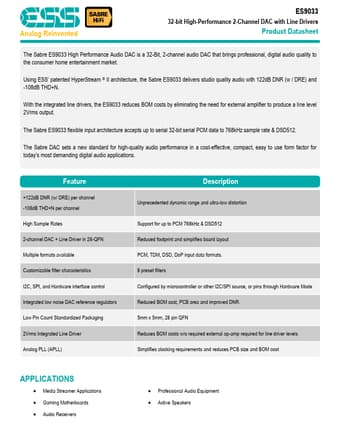

Preview of ES9033 PDF
ES9033 Datasheet Preview Page 2 ES9033 Datasheet Preview Page 3

Datasheet Details

Part number:

ES9033

Manufacturer:

ESS

File Size:

1.73 MB

Description:

32-bit high-performance 2-channel dac.
