145406 - MC145406

145406 Description

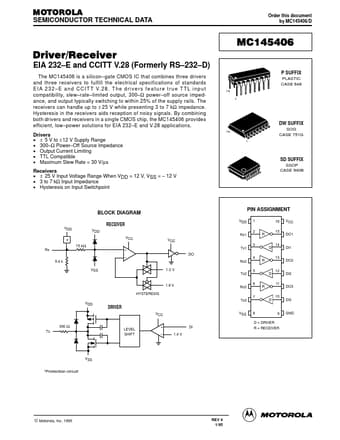

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MC145406/D Driver/Receiver EIA 232 *E and CCITT V.28 (Formerly RS *232 VDD Positive Power Supply (Pin 1) The most positive power supply pin, which is typically + 5 to + 12V.

145406 Features

* Tx output to swing toward VSS. A logic 0 causes the output to swing toward VDD (the output voltages will be slightly less than VDD or VSS depending upon the output load). Output slew rates are limited to a maximum of 30 V per µs. When the MC145406 is off (VDD = VSS = VCC = GND), the minimum output

145406 Applications

* Drivers
* ± 5 V to ±12 V Supply Range
* 300
* Ω Power
* Off Source Impedance
* Output Current Limiting
* TTL Compatible
* Maximum Slew Rate = 30 V/µs Receivers
* ± 25 V Input Voltage Range When VDD = 12 V, VSS =
* 12 V
* 3
