145106P - MC145106P

145106P Description

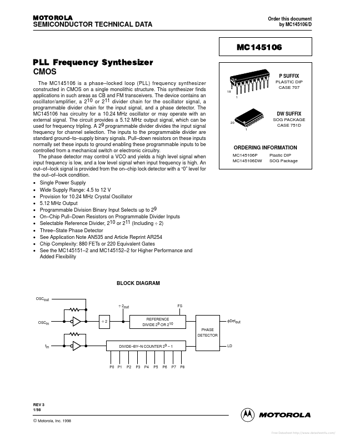

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MC145106/D MC145106 PLL Frequency Synthesizer CMOS The MC145106 is a phase *loc.
P0. P8 Programmable Inputs (PDIP. Pins 17. 9; SOG. Pins 19, 17. 14, 12. 9) Programmable divider.

145106P Features

* fset value is determined by the 11.31 MHz crystal frequency and is 10.7 MHz for the example. The VHF marine synthesizer in Figure 4 depicts a single loop approach for FM transceivers. The VCO operates on frequency during transmit and is offset downward during receive. The offset corresponds to the r

145106P Applications

* in such areas as CB and FM transceivers. The device contains an oscillator/amplifier, a 210 or 211 divider chain for the oscillator signal, a programmable divider chain for the input signal, and a phase detector. The MC145106 has circuitry for a 10.24 MHz oscillator or may operate with an external s
