1N4140, 1N4139 PLASTIC SILICON RECTIFIERS

Description

1N4139 *-1N4146 PLASTIC SILICON RECTIFIERS VOLTAGE RANGE: 50 *- 1200 V CURRENT: 3.0 A .

📥 Download Datasheet

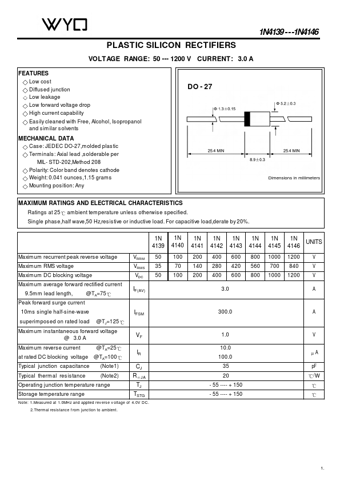

1N4140 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4140, 1N4139. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N4140, 1N4139
Manufacturer: ETC
File Size: 63.62 KB
Datasheet: 1N4139-ETC.pdf
Description: PLASTIC SILICON RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: 1N4140, 1N4139.
Please refer to the document for exact specifications by model.

Features

* Low cost Diffused junction Low leakage Low forward voltage drop High current capability Easily cleaned with Free, Alcohol, Isopropanol and sim ilar solvents MECHANICAL DATA Case: JEDEC DO-27,m olded plastic Term inals: Axial lead ,solderable per MIL- STD-202,Method 208 Polarity: Color band denotes c
