Part number	24HC2301
Manufacturer	ETC
File Size	100.31 KB
Description	Hybrid Stepper Motors
Datasheet	24HC2301-ETC.pdf

24HC2301 Product details

Features

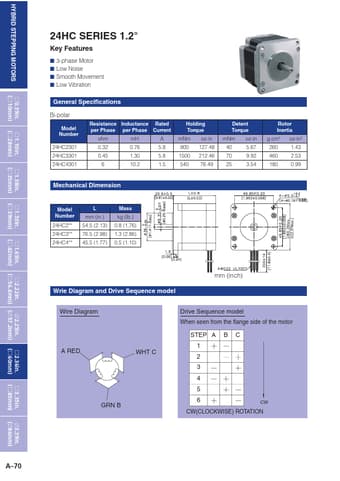

I 3-phase Motor I Low Noise I Smooth Movement I Low Vibration General Speciﬁcations Bi-polar Model Number 24HC2301 24HC3301 24HC4301 Resistance Inductance Rated per Phase per Phase Current ohm mH A 0.32 0.76 5.8 0.45 1.30 5.8 6 10.2 1.5 Holding Torque mNm oz-in 900 127.48 1500 212.46 540 76.49 Detent Torque mNm oz-in 40 5.67 70 9.92 25 3.54 Rotor Inertia g. cm2 oz-in2 260 1.43 460 2.53 180 0.99 Mechanical Dimension Model Number 24HC2.
24HC3.
24HC4.
L.
