24HC3301 Datasheet (100.31 KB)
24HC3301
ETC
100.31 KB
Hybrid stepper motors.
HYBRID STEPPING MOTORS
ƶ0.39in. ƶ1.10in. ƶ1.38in. ƶ1.53in. ƶ1.65in. ƶ2.22in. 2.25in. ƶ2.36in. ƶ3.35in. 3.39in. (ƶ10mm) (ƶ28mm) (ƶ35mm) (ƶ39mm) (ƶ42.

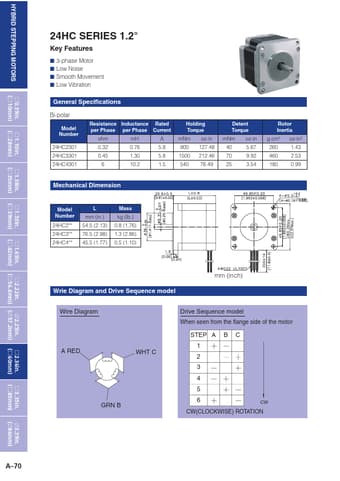

* I 3-phase Motor I Low Noise I Smooth Movement I Low Vibration General Specifications Bi-polar Model Number 24HC2301 24HC3301 24HC4301 Resistance Inductance Rated per Phase per Phase Current ohm mH A 0.32 0.76 5.8 0.45 1.30 5.8 6 10.2 1.5 Holding Torque mNm oz-in 900 127.48 1500 212.46
