2N5170R, 2N5164R Datasheet - ETC

2N5170R THYRISTORS

2N5164 thru 2N5171 (SILICON) 2N 5164R thru 2N5171 R THYRISTORS SILICON CONTROLLED RECTIFIERS .. designed for industrial and consumer applications such as power supplies, battery chargers, temperature, motor, light and welder controls. Supplied in Either Pressfit or Stud Package High Surge Current Rating - ITSM = 240 Amp Low On-State Voltage - 1.2 V (Typ) @ ITM = 20 Amp Practical Level Triggering and Holding Characteristics - 10 mA (Typ) @TC = 250 C .

2N5164R-ETC.pdf

This datasheet PDF includes multiple part numbers: 2N5170R, 2N5164R. Please refer to the document for exact specifications by model.

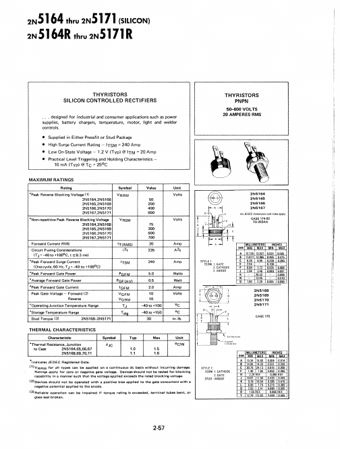

2N5170R Datasheet Preview Page 2 2N5170R Datasheet Preview Page 3

Datasheet Details

Part number:

2N5170R, 2N5164R

Manufacturer:

ETC

File Size:

331.75 KB

Description:

Thyristors.

Note:

This datasheet PDF includes multiple part numbers: 2N5170R, 2N5164R.
Please refer to the document for exact specifications by model.
