2N5979 NPN SILICON PLASTIC POWER TRANSISTORS

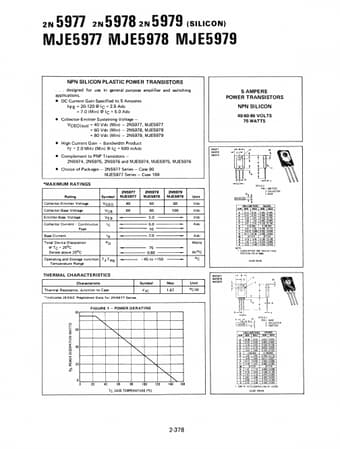

2N 5977 2N 5978 2N 5979 (SILICON) MJE5977 MJE5978 MJE5979 NPN SILICON PLASTIC POWER TRANSISTORS designed for use in general purpose amplifier and switching applications. DC Current Gain SpeCified to 5 Amperes hFE = 20 120@ IC = 2.5 Adc = 7.0 (Min) @IC = 5.0 Adc Coliector Emitter Sustaining Voltage VCEO(sus) = 40 Vdc (Min) - 2N5977, MJE5977 = 60 Vdc (Min) - 2N5978, MJE5978 = 80 Vdc (Min) - 2N5979, MJE5979 High Current Gain - Bandwidth Product tr = 2.0 M.

2N5977-ETC.pdf

This datasheet PDF includes multiple part numbers: 2N5979, 2N5977. Please refer to the document for exact specifications by model.
2N5979 Datasheet Preview Page 2 2N5979 Datasheet Preview Page 3

Datasheet Details

Part number:

2N5979, 2N5977

Manufacturer:

ETC

File Size:

327.22 KB

Description:

Npn silicon plastic power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N5979, 2N5977.
Please refer to the document for exact specifications by model.
