Part number:
A1810
Manufacturer:
ETC
File Size:
31.82 KB
Description:

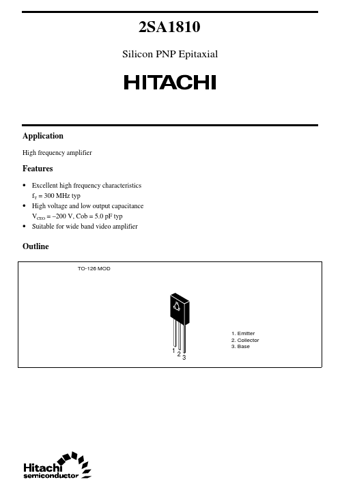

Silicon pnp epitaxial.
* Excellent high frequency characteristics fT = 300 MHz typ
* High voltage and low output capacitance VCEO =
* 200 V, Cob = 5.0 pF typ
* Suitable for wide band video amplifier Outline TO-126 MOD 123 1. Emitter 2. Collector 3. Base 2SA1810 Absolute Maximum Ratings (
A1810
ETC
31.82 KB
Silicon pnp epitaxial.
