AMC5902 6CH Motor Driver for CD-ROM / DVD-ROM

AMC5902 Description

AMC DOC.#: AMC5902_B March 2004  AMC5902 6CH Motor Driver for CD-ROM, DVD-ROM .
The AMC5902 is a monolithic chip with 6 channel motor drivers designed by advanced BiCMOS process technology.

AMC5902 Features

* Designed by advanced BiCMOS process, low power and low chip temperature. Patented package to reduce chip temperature. 3 BTL drivers, 2 PWM drivers and 3 phase spindle motor driver. Built-in triangular-wave generator. 0 to 5V wide voltage range for input pins Thermal shutdown with 30°C hysteresis. Bu

AMC5902 Applications

* PACKAGE PIN OUT CD-RW, DVD-RW CD-ROM, DVD, DVD-ROM Optical Disc Related Systems. HU+ HUHV+ HVHW+ HWHB PGND1 U VCC1 V GND GND GND GND GND PGND2 W VCC2 CSSP FOUT CTL1 CTL2 SPIN DGND LDIN VREF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 54 53

📥 Download Datasheet

Preview of AMC5902 PDF

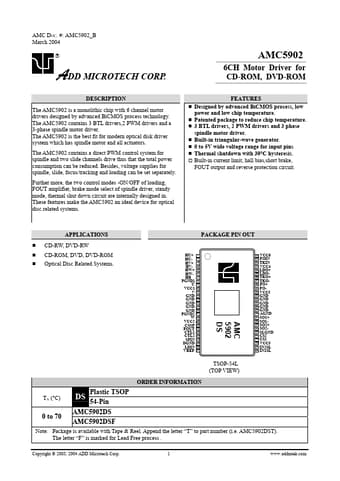

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AMC5902
Manufacturer
ETC
File Size
272.30 KB
Datasheet
AMC5902_ETC.pdf
Description
6CH Motor Driver for CD-ROM / DVD-ROM
