AZ831 - (AZ831 / AZ821) SUBMINIATURE DIP RELAY

📥 Download Datasheet

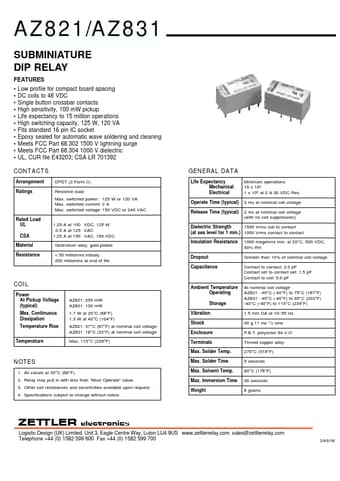

AZ831 Datasheet Preview — Preview of AZ831 PDF

datasheet Preview Page 2

Datasheet Details

Part number	AZ831
Manufacturer	ETC
File Size	61.65 KB
Description	(AZ831 / AZ821) SUBMINIATURE DIP RELAY
Datasheet	AZ831_ETC.pdf

AZ831 Product details

Features

Low profile for compact board spacing DC coils to 48 VDC Single button crossbar contacts High sensitivity, 100 mW pickup Life expectancy to 15 million operations High switching capacity, 125 W, 120 VA Fits standard 16 pin IC socket Epoxy sealed for automatic wave soldering and cleaning Meets FCC Part 68.302 1500 V lightning surge Meets FCC Part 68.304 1000 V dielectric UL, CUR file E4320.
