AZ850 - MICROMINIATURE

📥 Download Datasheet

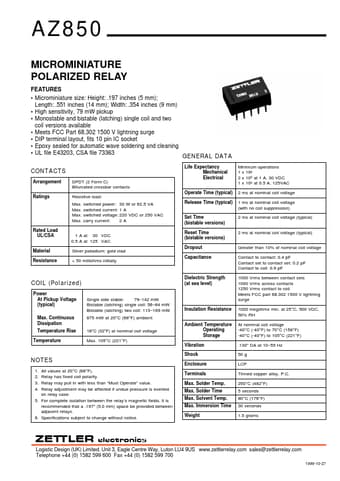

AZ850 Datasheet Preview — Preview of AZ850 PDF

datasheet Preview Page 2

Datasheet Details

Part number	AZ850
Manufacturer	ETC
File Size	55.69 KB
Description	MICROMINIATURE
Datasheet	AZ850_ETC.pdf

AZ850 Product details

Features

Microminiature size: Height: .197 inches (5 mm); Length: .551 inches (14 mm); Width: .354 inches (9 mm).
High sensitivity, 79 mW pickup.
Monostable and bistable (latching) single coil and two coil versions available.
Meets FCC Part 68.302 1500 V lightning surge.
DIP terminal layout, fits 10 pin IC socket.
Epoxy sealed for automatic wave soldering and cleaning.
UL file E43203, CSA file 73363.
