B4500 Datasheet - ETC

B4500 500 mA Low Dropout Voltage Regulators

The B4500 series are a group of positive output voltage, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Very low power consumption, only 2µA typ., and high accuracy is achieved though CMOS construction and programmable fuse technologies. O.

B4500 Features

* Maximum Output Current: 500 mA. Highly accurate: Output voltage +/- 2%. Only 2µA power Consumption. Very Low Dropout: 0.11V @ 100mA 0.3V @ 300mA 0.5V @ 450mA Offered in SOT-89 & SOT-223 Packages

* Applications

B4500 Datasheet (64.36 KB)

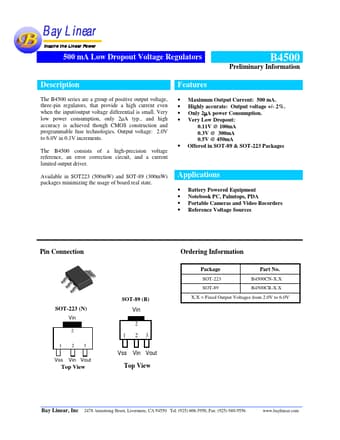

Preview of B4500 PDF
B4500 Datasheet Preview Page 2 B4500 Datasheet Preview Page 3

Datasheet Details

Part number:

B4500

Manufacturer:

ETC

File Size:

64.36 KB

Description:

500 ma low dropout voltage regulators.
