B4500CN

500 mA Low Dropout Voltage Regulators

B4500CN Features

* Maximum Output Current: 500 mA. Highly accurate: Output voltage +/- 2%. Only 2µA power Consumption. Very Low Dropout: 0.11V @ 100mA 0.3V @ 300mA 0.5V @ 450mA Offered in SOT-89 & SOT-223 Packages

* Applications

B4500CN General Description

The B4500 series are a group of positive output voltage, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Very low power consumption, only 2µA typ., and high accuracy is achieved though CMOS construction and programmable fuse technologies. O.

B4500CN Datasheet (64.36 KB)

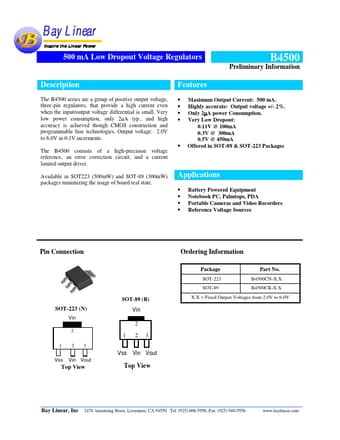

Preview of B4500CN PDF

Datasheet Details

Part number:

B4500CN

Manufacturer:

ETC

File Size:

64.36 KB

Description:

500 ma low dropout voltage regulators.
