BA5811FS - 5-channel Driver

BA5811FS Description

www.DataSheet4U.com 99W119A 5 Channel Driver for CD/CD-ROM BA5811FM .
The BA5811FM is 5-channel driver including 4-channel BTL drivers and 1-channel reversible motor driver for CD/CD-ROM applications.

BA5811FS Features

* 1) Small surface mounting power package HSOP-M28 2) Thermal shut down circuit built-in 3) Wide dynamic range (4.0V typical at PREVCC=12V, POWVCC=5V) 4) 4-channel BTL driver (2-channel is able to be used for a stepping motor) 5) The output voltage is adjustable by the voltage control terminal. HSOP-

📥 Download Datasheet

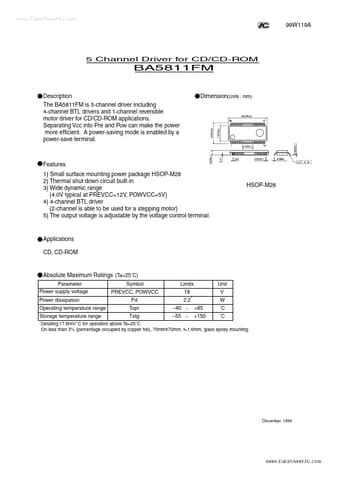

Preview of BA5811FS PDF
datasheet Preview Page 2

Datasheet Details

Part number
BA5811FS
Manufacturer
ETC
File Size
320.29 KB
Datasheet
BA5811FS_ETC.pdf
Description
5-channel Driver
