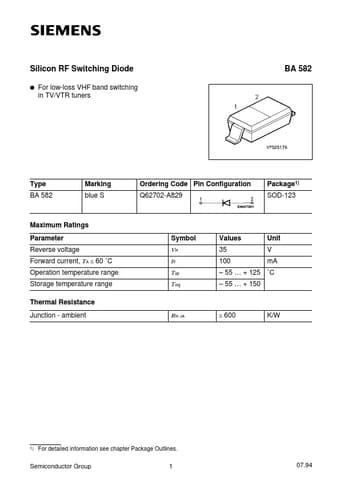

BA582 Silicon RF Switching Diode

Silicon RF Switching Diode q BA 582 For low-loss VHF band switching in TV/VTR tuners Type BA 582 Marking blue S Ordering Code Pin Configuration Q62702-A829 Package1) SOD-123 Maximum Ratings Parameter Reverse voltage Forward current, TA ≤ 60 ˚C Operation temperature range Storage temperature range Thermal Resistance Junction - ambient Rth JA ≤ Symbol VR IF Top Tstg Values 35 100 55 … + 150 Unit V mA 55 … + 125 ˚C 600 K/W 1) For detailed information see chapter P.
