BA5824FP Datasheet - LSI Computer Systems

BA5824FP - 4-channel BTL driver

BA5824FP incorporates 4-channel drivers that operate the motor and the actuator for car CD players.

CH1,2 and CH3,4 each have power supply independently.

The highly efficient drive can be achieved due to the low voltage operation.

The input of CH4 can be switched by the control pin.

Dimension (Units

BA5824FP Features

* 1) Wide dynamic range 2) Built-in thermal shut down circuit 3) Built-in mute function by control pin and mute pin HSOP28 Applications CD players, DVD players CD players, and DVD players for Car Absolute Maximum Ratings (Ta=25°C) Parameter Maximum applied voltage Power dissipation Operating temper

BA5824FP_LSIComputerSystems.pdf

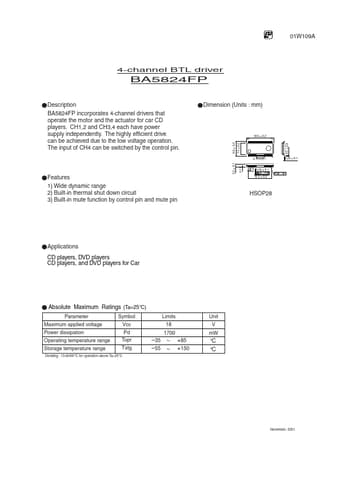

Preview of BA5824FP PDF
BA5824FP Datasheet Preview Page 2 BA5824FP Datasheet Preview Page 3

Datasheet Details

Part number:

BA5824FP

Manufacturer:

LSI Computer Systems

File Size:

85.80 KB

Description:

4-channel btl driver.
