BU8709KN - Melody sound source LSI for cellular phone

BU8709KN Description

03W024A Melody sound source LSI for cellular phone BU8709KN .
BU8709KN is a melody sound source LSI for cellular phones.

BU8709KN Features

* 1) Simultaneous generation of up to 64 polyphonic tones out of a tone palette of 222 sounds 2) High-quality tone reproduction using Fs=44.1kHz, QFN48U two-voice method 3) 12bit pitch bending and modulation support 4) Stereo and monaural modes 5) Built-in equalizer (3 channels) and vibration function

BU8709KN Applications

* Sound source for cellular phones and portable appliances Absolute Maximum Ratings (Ta=25˚C) Parameter Max. I/O supply voltage Max. CORE supply voltage Voltage applied to pin Input current Power dissipation Storage temperature range Operating temperature range Symbol VDDIO VDDCO VIN IIN Pd Tstg Topr

📥 Download Datasheet

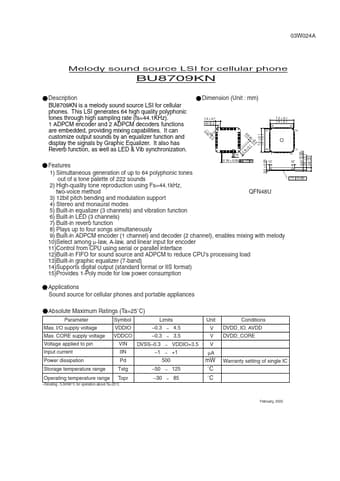

Preview of BU8709KN PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU8709KN
Manufacturer
ETC
File Size
67.73 KB
Datasheet
BU8709KN_ETC.pdf
Description
Melody sound source LSI for cellular phone
