BU8763FV - Melody LSI for Cellular Phone

BU8763FV Description

BU8763FV Communications Melody LSI for Cellular Phone BU8763FV BU8763FV is a melody LSI for cellular phones that can produce triple chords simultaneo.

BU8763FV Features

* 1) Generating 3 waves, Controlled by CPU 2) Selectable master clock (5.376MHz / 2.688MHz) 3) Changeable parameter for wave generate 4) Including DTMF create function 5) Changeable Sine wave or special square wave 6) Serial control from CPU 7) Include smoothing filter (fc=20KHz) 8) SSOP-B16 package

📥 Download Datasheet

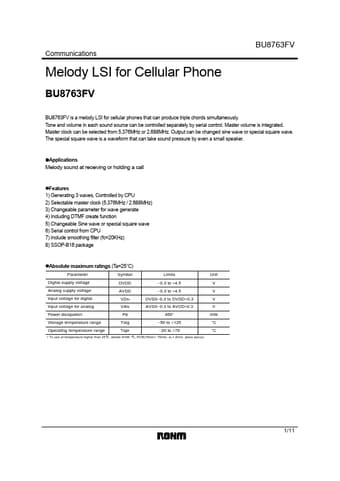

Preview of BU8763FV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU8763FV
Manufacturer
ROHM ↗
File Size
105.46 KB
Datasheet
BU8763FV_Rohm.pdf
Description
Melody LSI for Cellular Phone
