DDU4C-5300

5-TAP/ HCMOS-INTERFACED FIXED DELAY LINE (SERIES DDU4C)

DDU4C-5300 Features

* Five equally spaced outputs Fits standard 8-pin DIP socket Low profile Auto-insertable Input & outputs fully CMOS interfaced & buffered 2 10 T L fan-out capability IN 1 14 12 T2 T4 GND 4 10 6 7 8 data 3 ® delay devices, inc. PACKAGES VCC T

DDU4C-5300 General Description

The DDU4C-series device is a 5-tap digitally buffered delay line. The signal input (IN) is reproduced at the outputs (T1-T5), shifted in time by an amount determined by the device dash number (See Table). The total delay of the line is measured from IN to T5. The nominal tap-to-tap delay increment i.

DDU4C-5300 Datasheet (65.50 KB)

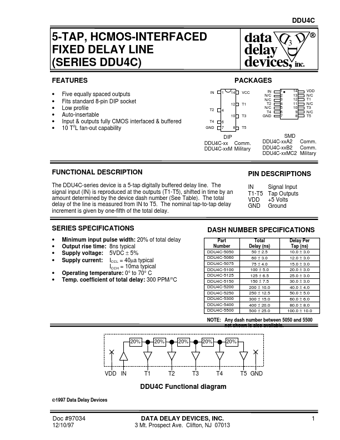

Preview of DDU4C-5300 PDF

Datasheet Details

Part number:

DDU4C-5300

Manufacturer:

ETC

File Size:

65.50 KB

Description:

5-tap/ hcmos-interfaced fixed delay line (series ddu4c).
