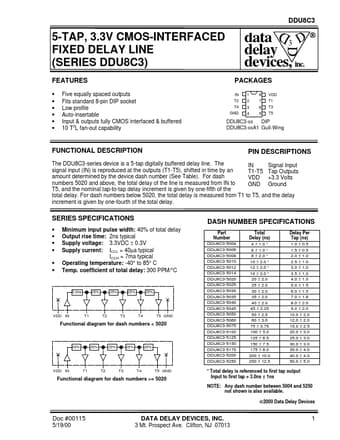

The DDU8C3-5075 by ETC is a 5-TAP/ 3.3V CMOS-INTERFACED FIXED DELAY LINE. Below is the official datasheet preview.
| Part number | DDU8C3-5075 |
|---|---|
| Manufacturer | ETC |
| File Size | 45.78 KB |
| Description | 5-TAP/ 3.3V CMOS-INTERFACED FIXED DELAY LINE |
| Datasheet |
 DDU8C3-5075-ETC.pdf
|
|
|
PIN DESCRIPTIONS The DDU8C3-series device is a 5-tap digitally buffered delay line.The IN Signal Input signal input (IN) is reproduced at the outputs (T1-T5), shifted in time by an T1-T5 Tap Outputs amount determined by the device dash number (See Table).For dash VDD +3.3 Volts numbers 5020 and above, the total delay of the line is measured from IN to GND Ground T5, and the nominal tap-to-tap delay increment is given by one-fifth of the total delay.For dash numbers below 5020, the total del
