DM2018 Datasheet - ETC

Demonstration Module

DM2018 Features

* ä ä ä ä ä Complete bq2018 circuit Combines the bq2018, voltage regulator, sense resistor, and backup capacitor on a single PCB Works for any battery pack chemistry or capacity Communicates charge/discharge information to a host with a single-wire interface Direct connections for the pack cells and

DM2018 General Description

The DM2018 Power Minder Demonstration Module is a typical implementation for the bq2018 Power Minder IC. The DM2018 incorporates a bq2018 Power Minder IC, supply voltage regulator, sense resistor, and backup capacitor on a small circuit board. The module provides direct connections for the positive .

DM2018 Datasheet (248.29 KB)

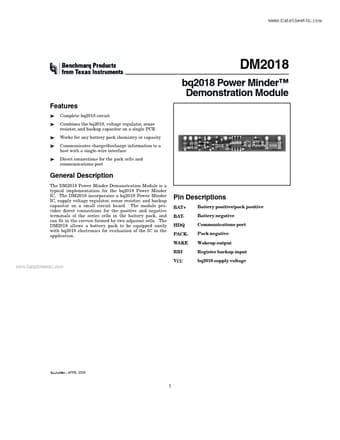

Preview of DM2018 PDF

Datasheet Details

Part number:

DM2018

Manufacturer:

ETC

File Size:

248.29 KB

Description:

Demonstration module.
