DM207 - Modem Side IC

Product Overview

Infineon Technologies

Datasheet Details

Part number	DM207
Manufacturer	Infineon Technologies
File Size	195.77 KB
Description	Modem Side IC
Datasheet	DM207 Datasheet

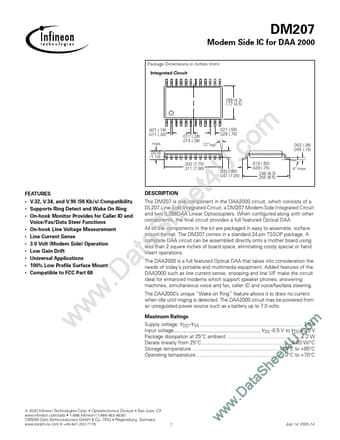

Additional preview pages of the DM207 datasheet.

Product details

Description

The DM207 is one component in the DAA2000 circuit, which consists of a DL207 Line-Side Integrated Circuit, a DM207 Modem-Side Integrated Circuit and two IL388DAA Linear Optocouplers.

Features

V.32, V.34, and V.90 (56 Kb/s) Compatibility.
Supports Ring Detect and Wake On Ring.
On-hook Monitor Provides for Caller ID and Voice/Fax/Data Steer Functions.
On-hook Line Voltage Measurement.
Line Current Sense.
3.0 Volt (Modem Side) Operation.
Low Gain Drift.
Universal.
