DT-25-B01X-XX Datasheet - ETC

DT-25-B01X-XX Barrier Style

Barrier Style / DT-25-B01X-XX Specification / Accessory Explaination Approval Plastic Housing Terminal Screw Working Temperature Insulation withstand Voltage Insulation Resistance Wire range Max.Torgue Value Rated Current Rated Voltage 300V 10A Materials PA6.6 , UL94V-0,Black Brass , 0.8t , Tin plated Steel , M3 , Nickel plated Specifications -40 ~ +105 AC2000V at 1 minute 500 or more at DC500V 22 ~14 AWG 8Kg / cm Pitch 7.62 .

DT-25-B01X-XX Datasheet (240.40 KB)

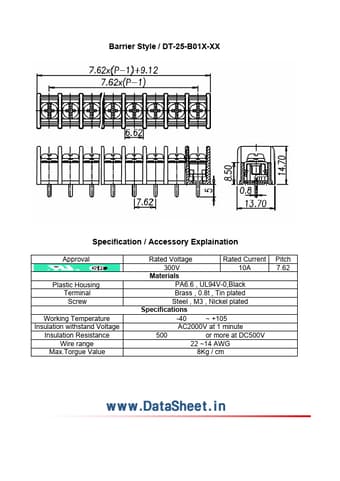

Preview of DT-25-B01X-XX PDF

Datasheet Details

Part number:

DT-25-B01X-XX

Manufacturer:

ETC

File Size:

240.40 KB

Description:

Barrier style.
