ELM9709NBA-N

CMOS voltage detector

ELM9709NBA-N Features

* Low power operation Low voltage operation High accuracy of detection voltage Low temperature coefficient Very small package : TYP. 1.0 μ A (VDD = 1.5V) : Reset operation assured at 0.8V : ± 2.5% : TYP. -300ppm/℃ (Detection voltage ＜ 2.0V) : TYP. -100ppm/℃ (Detection voltage ≧ 2.0V) : SOT-89, SO

ELM9709NBA-N General Description

VOLTAGE DETECTOR ELM 97xxxxA Series is a CMOS voltage detector IC for battery-operated portable devices. It consists of a very low-power-consumption reference voltage source, a comparator, an output driver, a hysteresis circuit, and detection voltage setting resistors. Output logic is positive, th.

ELM9709NBA-N Datasheet (210.89 KB)

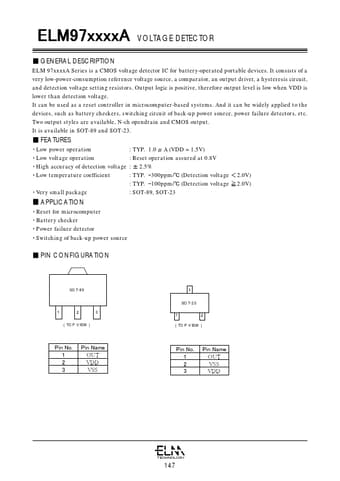

Preview of ELM9709NBA-N PDF

Datasheet Details

Part number:

ELM9709NBA-N

Manufacturer:

ETC

File Size:

210.89 KB

Description:

Cmos voltage detector.
