ES3207 - Video CD/DVD Companion Chip

Product Overview

Part number	ES3207
Manufacturer	ETC
File Size	72.75 KB
Description	Video CD/DVD Companion Chip
Datasheet	ES3207 Datasheet

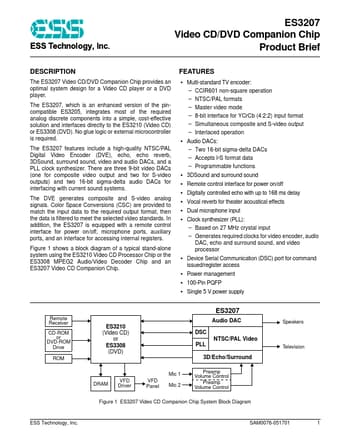

Additional preview pages of the ES3207 datasheet.

The ES3207 Video CD/DVD Companion Chip provides an optimal system design for a Video CD player or a DVD player.

include a high-quality NTSC/PAL Digital Video Encoder (DVE), echo, echo reverb, 3DSound, surround sound, video and audio DACs, and a PLL clock synthesizer. There are three 9-bit video DACs (one for composite video output and two for S-video outputs) and two 16-bit sigma-delta audio DACs for interfacing with current sound systems. The DVE generates composite and S-video analog signals. Color Space Conversions (CSC) are provided to match the input data to the required output format, then the data.
