ES3907, P-channel MOSFET

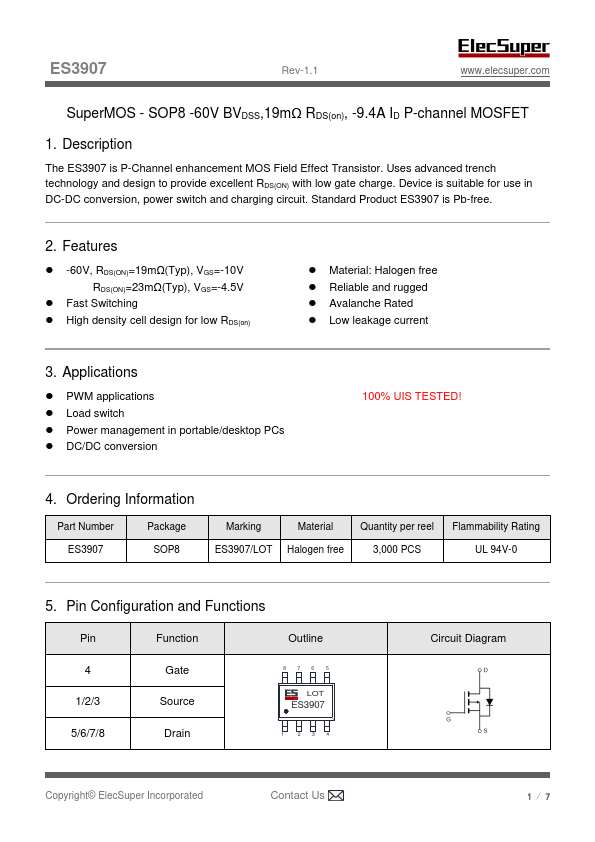

ES3907 Rev-1.1 www.elecsuper.com SuperMOS - SOP8 -60V BVDSS,19mΩ RDS(on), -9.4A ID P-channel MOSFET 1..
The ES3907 is P-Channel enhancement MOS Field Effect Transistor.

ES3907-ElecSuper.pdf

ES3907 Datasheet Preview — Preview of ES3907 PDF

Datasheet Details

Part number:

ES3907

Manufacturer:

ElecSuper

File Size:

902.53 KB

Description:

P-channel MOSFET

Features

* -60V, RDS(ON)=19mΩ(Typ), VGS=-10V RDS(ON)=23mΩ(Typ), VGS=-4.5V
* Fast Switching
* High density cell design for low RDS(on)
* Material: Halogen free
* Reliable and rugged
* Avalanche Rated

Applications

* PWM applications
* Load switch
* Power management in portable/desktop PCs
* DC/DC conversion 100% UIS TESTED! 4. Ordering Information Part Number ES3907 Package SOP8 Marking Material Quantity per reel ES3907/LOT Halogen free 3,000 PCS Flammability Rating UL 94V-0 5. Pin
