ET-34063A

DC to DC Converter Controller

ET-34063A Features

* Operation from 3.0 V to 40 V Input Low Standby Current Current Limiting Output Switch Current to 1.5 A Output Voltage Adjustable Frequency Operation to 100 kHz Precision 2% Reference ABSOLUTE MAXIMUM RATINGS Rating Power Supply Voltage Comparator Input Voltage Range Switch Collector Voltage Switch

ET-34063A General Description

The MC34063A Series is a monolithic control circuit containing the primary functions required for DC-to-DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current ou.

ET-34063A Datasheet (24.83 KB)

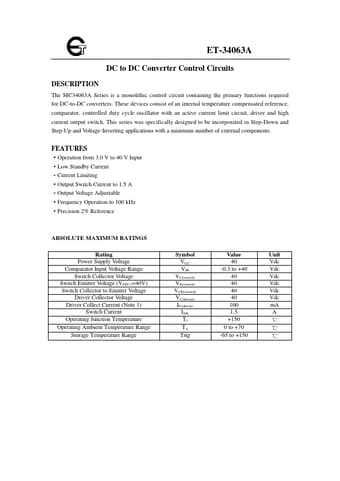

Preview of ET-34063A PDF

Datasheet Details

Part number:

ET-34063A

Manufacturer:

ETC

File Size:

24.83 KB

Description:

Dc to dc converter controller.
