HCM0412-R22M - Molding Power Choke

HCM0412-R22M Description

Molding Power Choke * HCM Series HCM Series .

HCM0412-R22M Features

* RoHS compliant
* Low profile type
* Shielded construction
* Ultra low buzz noise due to molding construction Product Identification MHCC series is designed for low profile type with low RDC and ultra large current. Its molded magnetic shielded type is suitable for high-density mou

HCM0412-R22M Applications

* High density DC/DC converters
* POL converters
* High current VRM/VRD for notebook / Server / desktop CPUs
* High speed charger
* For thickness less than 1.2mm, suitable for low profile applications e. g. , Ultra thin NB/Monitor/TV/Tablet Shape and Dimensions Recommended Patter

📥 Download Datasheet

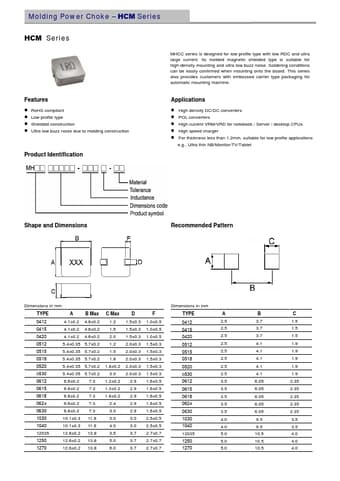

HCM0412-R22M Datasheet Preview — Preview of HCM0412-R22M PDF

Datasheet Details

Part number: HCM0412-R22M
Manufacturer: ETC
File Size: 532.35 KB
Datasheet: HCM0412-R22M-ETC1.pdf
Description: Molding Power Choke
