HT4817 - Dual 2.2W AUDIO AMPLIFIER

Product Overview

Datasheet Details

Part number	HT4817
Manufacturer	ETC
File Size	584.01 KB
Description	Dual 2.2W AUDIO AMPLIFIER
Datasheet	HT4817 Datasheet

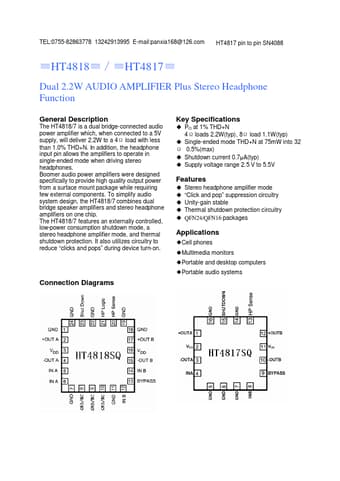

Additional preview pages of the HT4817 datasheet.

Product details

Description

The HT4818/7 is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.2W to a 4Ωload with less than 1.0% THD+N.

Features

an externally controlled, low-power consumption shutdown mode, a stereo headphone amplifier mode, and thermal shutdown protection. It also utilizes circuitry to reduce “clicks and pops”during device turn-on.
