HT4863

2.2W stereo headphone power amplifier

HT4863 Features

* Stereo Headphone Amplifier Mode ”Click and Pop” Suppression Circuitry Unity-Gain Stable Thermal Shutdown Protection Circuitry Exposed TSSOP20, SOP16, SOP16(W) and DIP16 Packages Available PO at 1% THD+N 3Ω(HT4863MTE) 2.5W(typ.) 4Ω(HT4863MTE) 2.2W(typ.) 8Ω(HT4863) 1.2W(typ.) Single-Ended

HT4863 General Description

The HT4863 is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.2W to a 4Ω load or 2.5W to a 3Ω load with less than 1.0% THD+N. In addition, the headphone input pin allows the amplifiers to operate in single-ended mode to drive stereo headphones. Boom.

HT4863 Datasheet (1.24 MB)

Preview of HT4863 PDF

Datasheet Details

Part number:

HT4863

Manufacturer:

HEROIC

File Size:

1.24 MB

Description:

2.2w stereo headphone power amplifier.

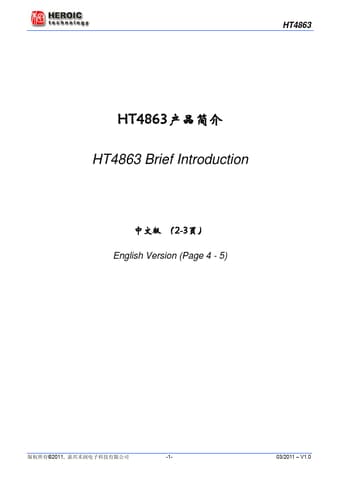

HT4863 HT4863 HT4863 Brief Introduction (2-3) English Version (Page 4 - 5) ©2011, -1- 03/2011

* V1.0 HT4863 2.2W

* @.
