HT4125 - Buffer Translator GATE

Datasheet Summary

Description

HT4125 is a low-voltage CMOS buffer gate that operates at a wider voltage range for portable, telecom, industrial, and automotive applications.

The output level is referenced to the supply voltage and is able to support 1.8-V, 2.5-V, 3.3V, and 5-V CMOS levels.

Features

  • Single-Supply Voltage Translator at 5.0-V, 3.3-V, 2.5-V, and 1.8-V VCC Operating Range of 1.8 V to 5.5 V Up Translation - 1.2 V to 1.8 V at 1.8-V VCC - 1.5 V to 2.5 V at 2.5-V VCC - 1.8 V to 3.3 V at 3.3-V VCC - 3.3 V to 5.0 V at 5.0-V VCC Down Translation - 3.3 V to 1.8 V at 1.8-V VCC - 3.3 V to 2.5 V at 2.5-V VCC - 5.0 V to 3.3 V at 3.3-V VCC Logic Output is Referenced to VCC Characterized up to 50 MHz at 3.3-V VCC 5.5 V Tolerance on Input Pins.
  • 40°C to 125°C Operating Temperature Rang.

📥 Download Datasheet

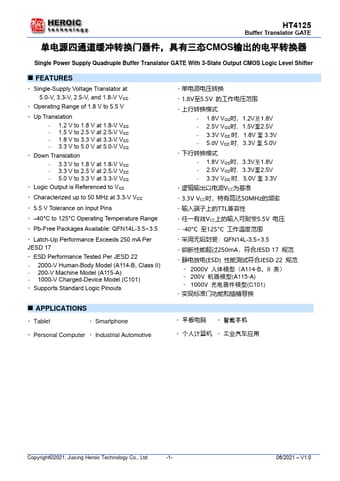

Datasheet preview – HT4125

Datasheet Details

Part number HT4125
Manufacturer HEROIC
File Size 1.17 MB
Description Buffer Translator GATE
Datasheet download datasheet HT4125 Datasheet
Additional preview pages of the HT4125 datasheet.

📁 Similar Datasheet

  • HT4100F - Relay (Htv)
  • HT400 - Commercial Grade Lampholders (Gilway Technical)
  • HT4054 - Li-ion Battery Charger (HOTCHIP)
  • HT42B532-x - USB to I2C Bridge IC (Holtek Semiconductor)
  • HT42B533-x - USB to SPI Bridge IC (Holtek Semiconductor)
  • HT42B534-x - USB to UART Bridge IC (Holtek Semiconductor)
  • HT42B564-x - USB (HID) to UART Bridge IC (Holtek Semiconductor)
  • HT431A - 3-terminal adjustable regulator (HTCSEMI)
  • HT431B - 3-terminal adjustable regulator (HTCSEMI)
  • HT431C - 3-terminal adjustable regulator (HTCSEMI)
Other Datasheets by HEROIC
  • HT4182 - 2-Cell Synchronous Boost Battery Charger
  • HT4066 - Over Voltage Protection
  • HT4822 - 160mW capacitor-free stereo headphone amplifier
  • HT4831 - 33mW output-free capacitor stereo headphone amplifier
  • HT4832 - 33mW output-free capacitor stereo headphone amplifier
  • HT4836 - Class AB Audio Power Amplifier
  • HT4863 - 2.2W stereo headphone power amplifier

Full PDF Text Transcription

Click to expand full text
HT4125 Buffer Translator GATE ，CMOS Single Power Supply Quadruple Buffer Translator GATE With 3-State Output CMOS Logic Level Shifter ◼ FEATURES Single-Supply Voltage Translator at 5.0-V, 3.3-V, 2.5-V, and 1.8-V VCC Operating Range of 1.8 V to 5.5 V Up Translation - 1.2 V to 1.8 V at 1.8-V VCC - 1.5 V to 2.5 V at 2.5-V VCC - 1.8 V to 3.3 V at 3.3-V VCC - 3.3 V to 5.0 V at 5.0-V VCC Down Translation - 3.3 V to 1.8 V at 1.8-V VCC - 3.3 V to 2.5 V at 2.5-V VCC - 5.0 V to 3.3 V at 3.3-V VCC Logic Output is Referenced to VCC Characterized up to 50 MHz at 3.3-V VCC 5.5 V Tolerance on Input Pins –40°C to 125°C Operating Temperature Range Pb-Free Packages Available: QFN14L-3.5×3.
