HT42B534-x - USB to UART Bridge IC

Datasheet Summary

Description

strings Internal 1.5kΩ pull-high resistor on D+ pin Fully-duplex Universal Asynchronous Receiver and Transmitter Interface UART Supports Baud Rate up to 3Mbps Supports maximum 128 bytes transmit buffer and 128 bytes receive

Features

  • Operating Voltage (VDD): 3.3V~5.5V.
  • UART pin Voltage (VDDIO): 1.8V~VDD (Less than VDD voltage).
  • Power down and wake-up functions to reduce power consumption.
  • Fully integrated 12MHz oscillator with 0.25% accuracy for all USB modes which requires no external components.
  • USB interface.
  • USB 2.0 Full Speed compatible.
  • Implements USB protocol composite device:.
  • Communication Device Class (CDC) for commu.

📥 Download Datasheet

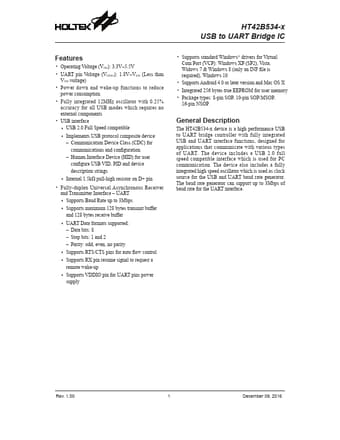

Datasheet preview – HT42B534-x

Datasheet Details

Part number HT42B534-x
Manufacturer Holtek Semiconductor
File Size 782.50 KB
Description USB to UART Bridge IC
Datasheet download datasheet HT42B534-x Datasheet
Additional preview pages of the HT42B534-x datasheet.
