HT45B0003 - Dual Line Power Line Data Transceiver

Product Overview

Holtek Semiconductor

Datasheet Details

Part number	HT45B0003
Manufacturer	Holtek Semiconductor
File Size	351.02 KB
Description	Dual Line Power Line Data Transceiver
Datasheet	HT45B0003 Datasheet

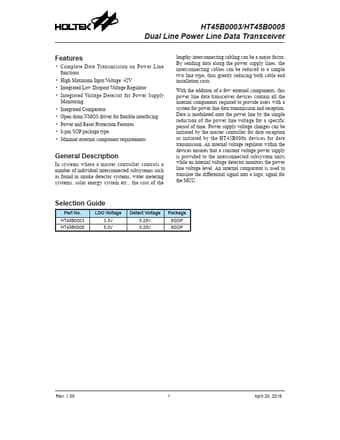

Additional preview pages of the HT45B0003 datasheet.

Product details

Description

In systems where a master controller controls a number of individual interconnected subsystems such as found in smoke detector systems, water metering systems, solar energy system etc., the cost of the lengthy interconnecting cabling can be a major factor.By sending data along the power supply lines, the interconnecting cables can be reduced to a simple two line type, thus greatly reducing both cable and installation costs.With the addition of a few external components, this power line data t

Features

Complete Data Transmission on Power Line functions.
High Maximum Input Voltage: 42V.
Integrated Low Dropout Voltage Regulator.
Integrated Voltage Detector for Power Supply Monitoring.
Integrated Comparator.
Open drain NMOS driver for flexible interfacing.
Power and Reset Protection Features.
8-pin SOP package type.
Minimal external component requirements General.
