HT4182 - 2-Cell Synchronous Boost Battery Charger

Datasheet Summary

Description

HT4182 is a 5V input, two-cell synchronous boost Li-Ion battery charger.

The input terminal has UVLO and OVP protection.

HT4182 adopts synchronous boost converter integrating switches to provide a high efficiency and small size solution.

Features

  • S High-efficiency 1.6-A, 800kHz Synchronous boost charger 92% charge efficiency at 5V adapter, 7.2V battery, 1A charge Support 5V input and 2-cell Li-Ion battery Supports 4V-6V input voltage range with 16V absolute maximum input voltage rating Adaptive input current limit: 4-4.3V input OVP protection: 6.2V Charge voltage selectable: 8.4V / 8.7V Short current / trickle current / constant current / constant voltage charge mode Programmable charge current by external resistor Status indication Char.

📥 Download Datasheet

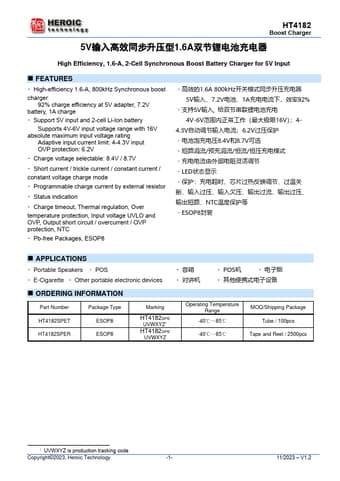

Datasheet preview – HT4182

Datasheet Details

Part number HT4182
Manufacturer HEROIC
File Size 1.19 MB
Description 2-Cell Synchronous Boost Battery Charger
Datasheet download datasheet HT4182 Datasheet
Additional preview pages of the HT4182 datasheet.

📁 Similar Datasheet

  • HT4100F - Relay (Htv)
  • HT400 - Commercial Grade Lampholders (Gilway Technical)
  • HT4054 - Li-ion Battery Charger (HOTCHIP)
  • HT42B532-x - USB to I2C Bridge IC (Holtek Semiconductor)
  • HT42B533-x - USB to SPI Bridge IC (Holtek Semiconductor)
  • HT42B534-x - USB to UART Bridge IC (Holtek Semiconductor)
  • HT42B564-x - USB (HID) to UART Bridge IC (Holtek Semiconductor)
  • HT431A - 3-terminal adjustable regulator (HTCSEMI)
  • HT431B - 3-terminal adjustable regulator (HTCSEMI)
  • HT431C - 3-terminal adjustable regulator (HTCSEMI)
Other Datasheets by HEROIC
  • HT4125 - Buffer Translator GATE
  • HT4066 - Over Voltage Protection
  • HT4822 - 160mW capacitor-free stereo headphone amplifier
  • HT4831 - 33mW output-free capacitor stereo headphone amplifier
  • HT4832 - 33mW output-free capacitor stereo headphone amplifier
  • HT4836 - Class AB Audio Power Amplifier
  • HT4863 - 2.2W stereo headphone power amplifier

Full PDF Text Transcription

Click to expand full text
HT4182 Boost Charger 5V1.6A High Efficiency, 1.6-A, 2-Cell Synchronous Boost Battery Charger for 5V Input ◼ FEATURES High-efficiency 1.6-A, 800kHz Synchronous boost charger 92% charge efficiency at 5V adapter, 7.2V battery, 1A charge Support 5V input and 2-cell Li-Ion battery Supports 4V-6V input voltage range with 16V absolute maximum input voltage rating Adaptive input current limit: 4-4.3V input OVP protection: 6.2V Charge voltage selectable: 8.4V / 8.7V Short current / trickle current / constant current / constant voltage charge mode Programmable charge current by external resistor Status indication Charge timeout, Thermal regulation, Over temperature protection, Input voltage UVLO and OVP, Output short circuit / overcurrent / OVP protection, NTC Pb-free Packages, ESOP8 1.
