HT4066 - Over Voltage Protection

Datasheet Summary

Description

The HT4066 over-voltage protection device

Features

  • S Input Voltage Range: 3V to 36V Output Power on Time: 10ms (Typ. ) OVP Threshold Fixed 5.85V (Typ. ) or Externally adjustable OVP voltage 60ns Fast Transient response RDS(ON) Internal Switches:125mΩ Under-Voltage, and Thermal Shutdown Protection Packages: Pb-free Packages, SOT23-6 ：3V~36V ：10ms (Typ. ) OVP：5.85V(Typ. )， 60nsOVP MOS RDS(ON) 125mΩ SOT23-6.

📥 Download Datasheet

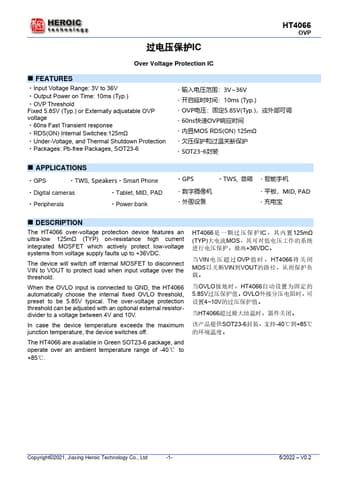

Datasheet preview – HT4066

Datasheet Details

Part number HT4066
Manufacturer HEROIC
File Size 734.82 KB
Description Over Voltage Protection
Datasheet download datasheet HT4066 Datasheet
Additional preview pages of the HT4066 datasheet.

📁 Similar Datasheet

  • HT400 - Commercial Grade Lampholders (Gilway Technical)
  • HT4054 - Li-ion Battery Charger (HOTCHIP)
  • HT4100F - Relay (Htv)
  • HT42B532-x - USB to I2C Bridge IC (Holtek Semiconductor)
  • HT42B533-x - USB to SPI Bridge IC (Holtek Semiconductor)
  • HT42B534-x - USB to UART Bridge IC (Holtek Semiconductor)
  • HT42B564-x - USB (HID) to UART Bridge IC (Holtek Semiconductor)
  • HT431A - 3-terminal adjustable regulator (HTCSEMI)
  • HT431B - 3-terminal adjustable regulator (HTCSEMI)
  • HT431C - 3-terminal adjustable regulator (HTCSEMI)
Other Datasheets by HEROIC
  • HT4125 - Buffer Translator GATE
  • HT4182 - 2-Cell Synchronous Boost Battery Charger
  • HT4822 - 160mW capacitor-free stereo headphone amplifier
  • HT4831 - 33mW output-free capacitor stereo headphone amplifier
  • HT4832 - 33mW output-free capacitor stereo headphone amplifier
  • HT4836 - Class AB Audio Power Amplifier
  • HT4863 - 2.2W stereo headphone power amplifier

Full PDF Text Transcription

Click to expand full text
IC HT4066 OVP Over Voltage Protection IC ◼ FEATURES Input Voltage Range: 3V to 36V Output Power on Time: 10ms (Typ.) OVP Threshold Fixed 5.85V (Typ.) or Externally adjustable OVP voltage 60ns Fast Transient response RDS(ON) Internal Switches:125mΩ Under-Voltage, and Thermal Shutdown Protection Packages: Pb-free Packages, SOT23-6 ：3V~36V ：10ms (Typ.) OVP：5.85V(Typ.)， 60nsOVP MOS RDS(ON) 125mΩ SOT23-6 ◼ APPLICATIONS GPS TWS, SpeakersSmart Phone Digital cameras Tablet, MID, PAD Peripherals Power bank GPS TWS, ，MID, PAD ◼ DESCRIPTION The HT4066 over-voltage protection device features an ultra-low 125mΩ (TYP) on-resistance high current integrated MOSFET which actively protect low-voltage systems from voltage supply faults up to +36VDC.
