HT400 - Commercial Grade Lampholders

This page provides the datasheet information for the HT400, a member of the HT456 Commercial Grade Lampholders family.

📥 Download Datasheet

Datasheet preview – HT400

Datasheet Details

Part number HT400
Manufacturer Gilway Technical
File Size 135.09 KB
Description Commercial Grade Lampholders
Datasheet download datasheet HT400 Datasheet
Additional preview pages of the HT400 datasheet.

📁 Similar Datasheet

  • HT4054 - Li-ion Battery Charger (HOTCHIP)
  • HT4066 - Over Voltage Protection (HEROIC)
  • HT4100F - Relay (Htv)
  • HT4125 - Buffer Translator GATE (HEROIC)
  • HT4182 - 2-Cell Synchronous Boost Battery Charger (HEROIC)
  • HT42B532-x - USB to I2C Bridge IC (Holtek Semiconductor)
  • HT42B533-x - USB to SPI Bridge IC (Holtek Semiconductor)
  • HT42B534-x - USB to UART Bridge IC (Holtek Semiconductor)
  • HT42B564-x - USB (HID) to UART Bridge IC (Holtek Semiconductor)
  • HT431A - 3-terminal adjustable regulator (HTCSEMI)
Other Datasheets by Gilway Technical
  • HT456 - Commercial Grade Lampholders
  • HT458 - Commercial Grade Lampholders

Full PDF Text Transcription

Click to expand full text

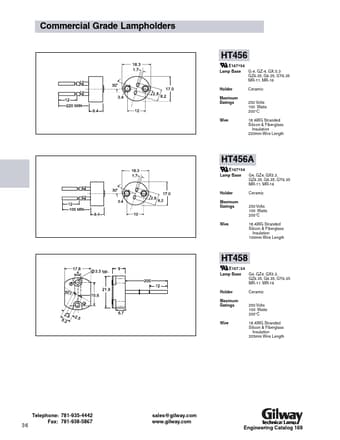

www.DataSheet4U.com Commercial Grade Lampholders HT456 E167154 Lamp Base G-4, GZ-4, GX-5.3 GZ6.35, G6.35, GY6.35 MR-11, MR-16 Holder Maximum Ratings Ceramic 250 Volts 100 Watts 200°C 18 AWG Stranded Silicon & Fiberglass Insulation 220mm Wire Length Wire HT456A E167154 Lamp Base G4, GZ4, GX5.3, GZ6.35, G6.35, GY6.35 MR-11. MR-16 Holder Maximum Ratings Ceramic 250 Volts 100 Watts 200°C 18 AWG Stranded Silicon & Fiberglass Insulation 100mm Wire Length Wire HT458 E167154 Lamp Base G4, GZ4, GX5.3, GZ6.35, G6.35, GY6.35 MR-11. MR-16 Holder Maximum Ratings Ceramic 250 Volts 100 Watts 200°C 18 AWG Stranded Silicon & Fiberglass Insulation 205mm Wire Length Wire 36 Telephone: 781-935-4442 Fax: 781-938-5867 sales@gilway.com www.gilway.
