HT42B532-x - USB to I2C Bridge IC

Datasheet Summary

Description

strings Integrated an internal 1.5kΩ pull-high resistor on D+ pin Serial Interface I2C Supports clock rate up to 400kHz Supports Master and Slave modes decided by AP command Supports maximum 62 bytes tra

Features

  • Operating Voltage (VDD): 3.3V~5.5V.
  • I2C pins Voltage (VDDIO): 1.8V~VDD (Less than VDD voltage).
  • Fully integrated internal 12MHz oscillator with 0.25% accuracy for all USB modes which requires no external components.
  • USB interface.
  • USB 2.0 Full Speed compatible.
  • Implements USB protocol composite device:.
  • Communication Device Class (CDC) for communications and configuration.
  • Human Inte.

📥 Download Datasheet

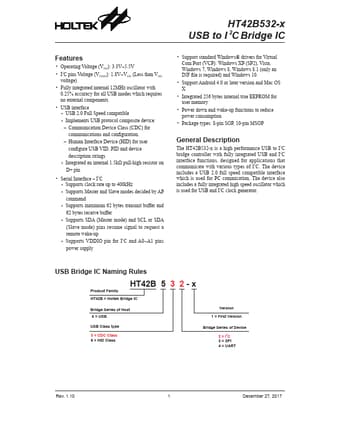

Datasheet preview – HT42B532-x

Datasheet Details

Part number HT42B532-x
Manufacturer Holtek Semiconductor
File Size 564.26 KB
Description USB to I2C Bridge IC
Datasheet download datasheet HT42B532-x Datasheet
Additional preview pages of the HT42B532-x datasheet.

📁 Similar Datasheet

  • HT400 - Commercial Grade Lampholders (Gilway Technical)
  • HT4054 - Li-ion Battery Charger (HOTCHIP)
  • HT4066 - Over Voltage Protection (HEROIC)
  • HT4100F - Relay (Htv)
  • HT4125 - Buffer Translator GATE (HEROIC)
  • HT4182 - 2-Cell Synchronous Boost Battery Charger (HEROIC)
  • HT431A - 3-terminal adjustable regulator (HTCSEMI)
  • HT431B - 3-terminal adjustable regulator (HTCSEMI)
  • HT431C - 3-terminal adjustable regulator (HTCSEMI)
  • HT4344A - Motor driver (HTCSEMI)
Other Datasheets by Holtek Semiconductor

Full PDF Text Transcription

Click to expand full text
HT42B532-x USB to I 2C Bridge IC Features • Operating Voltage (VDD): 3.3V~5.5V • I2C pins Voltage (VDDIO): 1.8V~VDD (Less than VDD voltage) • Fully integrated internal 12MHz oscillator with 0.25% accuracy for all USB modes which requires no external components • USB interface ♦♦ USB 2.0 Full Speed compatible ♦♦ Implements USB protocol composite device: –– Communication Device Class (CDC) for communications and configuration. –– Human Interface Device (HID) for user configure USB VID, PID and device description strings ♦♦ Integrated an internal 1.
