HT45B0016

Wireless Charger Transmitter Power Stage

HT45B0016 Features

* Integrated Low Side NMOS: RDSON=12mΩ @ VCC=5V

* Integrated High Side NMOS: RDSON=30mΩ @ VCC=5V

* Integrated OCP function with over current trigger point adjustable using an external resistor

* Integrated OTP function

* Enable pin (EN) controls the outpu

HT45B0016 General Description

The HT45B0016 is a two-in-one power half-bridge chip developed by Holtek for wireless charger applications. The half-bridge power stage with integrated NMOS, can work with the HT66FW2230 or HT66FW2350 to achieve complete wireless charger solutions. The VIN input range is 4.5V~25V covering various wi.

HT45B0016 Datasheet (394.80 KB)

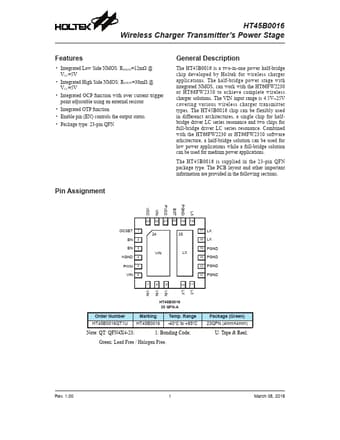

Preview of HT45B0016 PDF

Datasheet Details

Part number:

HT45B0016

Manufacturer:

Holtek Semiconductor

File Size:

394.80 KB

Description:

Wireless charger transmitter power stage.
