HT45B0F - SPI-to-UART Bridge

Product Overview

Holtek Semiconductor

Part number	HT45B0F
Manufacturer	Holtek Semiconductor
File Size	249.33 KB
Description	SPI-to-UART Bridge
Datasheet	HT45B0F Datasheet

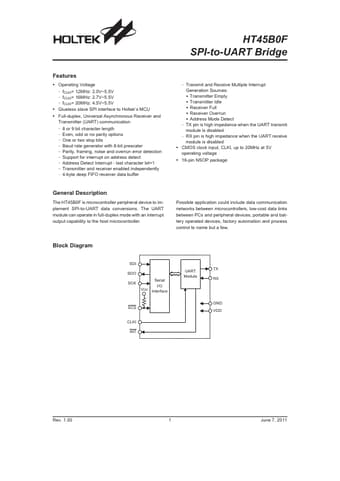

Additional preview pages of the HT45B0F datasheet.

The HT45B0F is microcontroller peripheral device to implement SPI-to-UART data conversions.

Operating Voltage - Transmit and Receive Multiple Interrupt fCLKI= 12MHz: 2.0V~5.5V fCLKI= 16MHz: 2.7V~5.5V fCLKI= 20MHz: 4.5V~5.5V.
Glueless slave SPI interface to Holtek¢s MCU.
Full-duplex, Universal Asynchronous Receiver and - Transmitter (UART) communication - 8 or 9 bit character length Even, odd or no parity options One or two stop bits Baud rate generator with 8-bit prescaler Parity, framing, noise and overrun error detection Support for interrupt on address detect Add.
