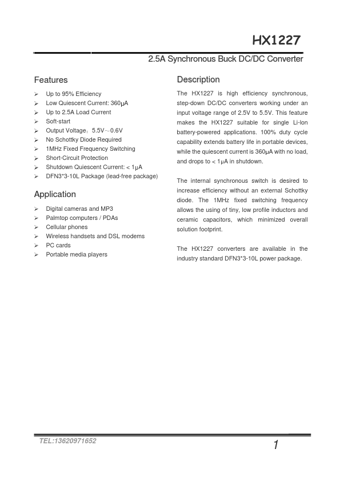

HX1227 Datasheet, Converter, ETC

HX1227 Features

• Converter Up to 95% Efficiency Low Quiescent Current: 360µA Up to 2.5A Load Current Soft-start ： ～Output Voltage 5.5V 0.6V No Schottky Diode Required 1MHz Fixed Frequency Switching Short-Circuit

PDF File Details

Part number:

HX1227

Manufacturer:

ETC

File Size:

129.64kb

Download:

📄 Datasheet

Description:

2.5a synchronous buck dc/dc converter. The HX1227 is high efficiency synchronous, step-down DC/DC converters working under an input voltage range of 2.5V to 5.5V. This feat

HX1227 Application

• Applications 100% duty cycle capability extends battery life in portable devices, while the quiescent current is 360µA with no load, and drops to <
