HX1203NL 10/100BASE-TX QUAD PORT TRANSFORMER MODULES

10/100BASE-TX QUAD PORT TRANSFORMER MODULES For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios RoHS-6 peak reflow temperature rating: 245°C RoHS-5 peak reflow temperature rating: 235°C Meets IEEE 802.3 specification Models designed to support four single- or double-stacked RJ-45 connectors Electrical Specifications @ 25°C Operating Temperature 0°C to 70°C RoHS-54 Compliant Part Number H1036L H1044 H1053 H1053 H1062 H1071 HX1203 1 HX1236 1 1. 2. 3. 4. 5. RoHS-65 C.

HX1203-Pulse.pdf

This datasheet PDF includes multiple part numbers: HX1203NL, HX1203. Please refer to the document for exact specifications by model.

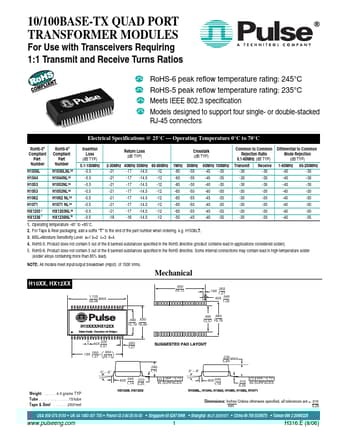

HX1203NL Datasheet Preview Page 2 HX1203NL Datasheet Preview Page 3

Datasheet Details

Part number:

HX1203NL, HX1203

Manufacturer:

Pulse

File Size:

269.93 KB

Description:

10/100base-tx quad port transformer modules.

Note:

This datasheet PDF includes multiple part numbers: HX1203NL, HX1203.
Please refer to the document for exact specifications by model.
