IL-G-C2-SC-10000 - Connector

Datasheet Summary

Features

  • www. datasheet4u. com 1. Ultra-compact driver measuring a mere 2.2 x 2.9 x 1.7 inches. 2. Bi-polar fixed-current driver. 3. Micro-stepping feature may be used to be selected from any one of 1/1 (full-step), 1/2 (micro-step), and 1/4 (micro-step)settings. 4. Through the use of 3-bit external signals, electric current settings may be specified to any one of a range of 8 different settings from 0.41-2A/phase power. 5. Input commands may be selected from either of direction-of-rotation separate seria.

📥 Download Datasheet

Datasheet preview – IL-G-C2-SC-10000

Datasheet Details

Part number IL-G-C2-SC-10000
Manufacturer ETC
File Size 182.69 KB
Description Connector
Datasheet download datasheet IL-G-C2-SC-10000 Datasheet
Additional preview pages of the IL-G-C2-SC-10000 datasheet.

📁 Similar Datasheet

  • IL-G-15S-S3C2 - IL-G Series Connectors (Japan Aviation Electronics)
  • IL-G-xxP-S3x2 - IL-G Series Connectors (Japan Aviation Electronics)
  • IL-G-xxS-S3x2 - IL-G Series Connectors (Japan Aviation Electronics)
  • IL-2022 - Reed Switch (Reed Relays and Electronics)
  • IL-S-C2-S-10000 - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-C2-S-10000 - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xP-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xP-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xS-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xS-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
Other Datasheets by ETC

    Full PDF Text Transcription

    Click to expand full text

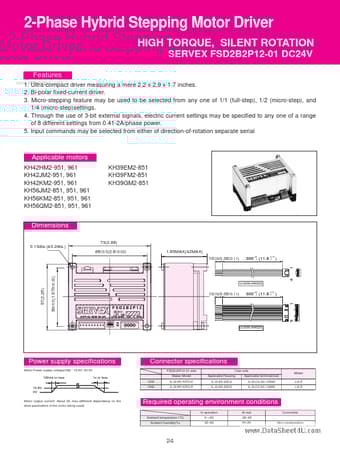

    2-Phase Hybrid Stepping Motor Driver HIGH TORQUE, SILENT ROTATION SERVEX FSD2B2P12-01 DC24V Features www.datasheet4u.com 1. Ultra-compact driver measuring a mere 2.2 x 2.9 x 1.7 inches. 2. Bi-polar fixed-current driver. 3. Micro-stepping feature may be used to be selected from any one of 1/1 (full-step), 1/2 (micro-step), and 1/4 (micro-step)settings. 4. Through the use of 3-bit external signals, electric current settings may be specified to any one of a range of 8 different settings from 0.41-2A/phase power. 5. Input commands may be selected from either of direction-of-rotation separate serial Applicable motors KH42HM2-951, 961 KH42JM2-951, 961 KH42KM2-951, 961 KH56JM2-851, 951, 961 KH56KM2-851, 951, 961 KH56QM2-851, 951, 961 KH39EM2-851 KH39FM2-851 KH39GM2-851 Dimensions 73(2.
