IL-2022 - Reed Switch

📥 Download Datasheet

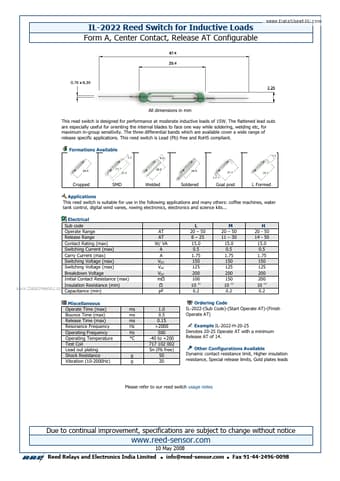

Datasheet preview – IL-2022

Datasheet Details

Part number IL-2022
Manufacturer Reed Relays and Electronics
File Size 119.76 KB
Description Reed Switch
Datasheet download datasheet IL-2022 Datasheet
Additional preview pages of the IL-2022 datasheet.

📁 Similar Datasheet

  • IL-G-15S-S3C2 - IL-G Series Connectors (Japan Aviation Electronics)
  • IL-G-C2-SC-10000 - Connector (ETC)
  • IL-G-xxP-S3x2 - IL-G Series Connectors (Japan Aviation Electronics)
  • IL-G-xxS-S3x2 - IL-G Series Connectors (Japan Aviation Electronics)
  • IL-S-C2-S-10000 - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-C2-S-10000 - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xP-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xP-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xS-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
  • IL-S-xS-xxxx - (IL-S-xxxx Series) CONNECTOR CONTACT (Japan Aviation Electronics)
Other Datasheets by Reed Relays and Electronics

    Full PDF Text Transcription

    Click to expand full text
    IL-2022 Reed Switch for Inductive Loads Form A, Center Contact, Release AT Configurable All dimensions in mm This reed switch is designed for performance at moderate inductive loads of 15W. The flattened lead outs are especially useful for orienting the internal blades to face one way while soldering, welding etc, for maximum in-group sensitivity. The three differential bands which are available cover a wide range of release specific applications. This reed switch is Lead (Pb) free and RoHS compliant. Formations Available Cropped SMD Welded Soldered Goal post L Formed Applications This reed switch is suitable for use in the following applications and many others: coffee machines, water tank control, digital wind vanes, rowing electronics, electronics and science kits...
