LG122321 Display Module

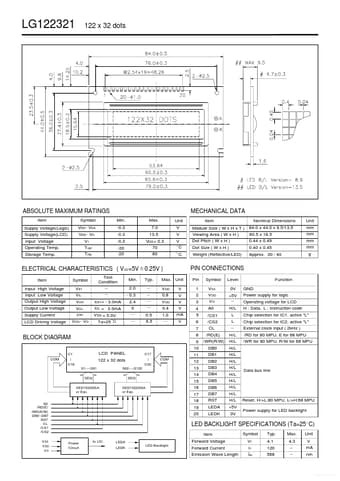

LG122321 122 x 32 dots ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -20 Max. 7.0 13.5 VDD + 0.3 70 80 Unit V V V C MECHANICAL DATA Item Nominal Dimensions Unit mm mm mm mm g Module Size ( W x H x T ) 84.0 x 44.0 x 9.5/13.5 60.5 x 18.5 Viewing Area ( W x H ) Dot Pitch ( W x H ) 0.44 x 0.49 0.40 x 0.45 Dot Size ( W x H ) Weight (Reflective/LED) Approx. 30 / 40 .
