LG122322 Datasheet - ETC

LG122322 122 x 32 dots

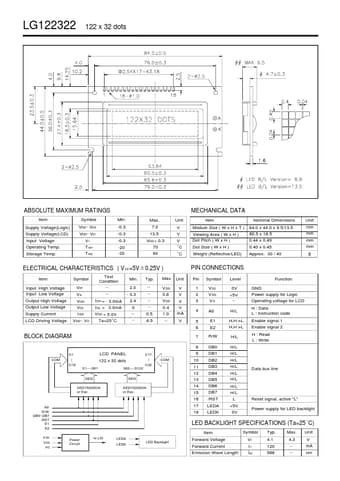

LG122322 122 x 32 dots ABSOLUTE MAXIMUM RATINGS Item Supply Voltage(Logic) Supply Voltage(LCD) Input Voltage Operating Temp. Storage Temp. Symbol VDD - VSS VDD - VO VI Topr Tstg Min. -0.3 -0.3 -0.3 -20 -20 Max. 7.0 13.5 VDD + 0.3 70 80 Unit V V V C MECHANICAL DATA Item Module Size ( W x H x T ) Viewing Area ( W x H ) Dot Pitch ( W x H ) Dot Size ( W x H ) Weight (Reflective/LED) Nominal Dimensions 84.0 x 44.0 x 9.5/13.5 60.5 x 18.5 0.44 x 0.49 0.40 x 0.45 Approx. 30 / 40 Unit mm mm mm mm g .
