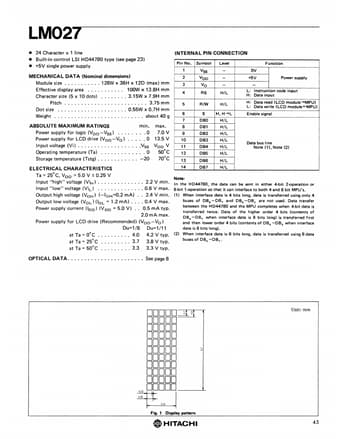

LM027 24 Character x 1 line Built-in control LSI HD44780 type (see page 23) +5V single power supply MECHANICAL DATA (Nominal dimensions) Module size . . . . . . . . . . . 126W x 36H x 120 (max) mm Effective display area . . . . . . . . . . . 100W x 13.8H mm Character size (5 x 10 dots) 3.15W x 7.9H mm Pitch 3.75 mm Dot size . . . . . . . . . . . . . . . . . . . . . 0.55W x 0.7H mm Weight about 40 g ABSOLUTE MAXIMUM RATINGS min. Power supply for logic (Voo-Vs.
