M3485

(M348x) Multi-Instrument Melody Generator

M3485 Features

* Powered by a 1.5V battery

* Low standby current

* 512-note memory, up to 16 songs

* 8 playing modes by user setting

* One built-in RC oscillator

* 8 beats selectable

* 3 timbres - piano, organ, and mandolin

* 5 tempos available throug

M3485 General Description

The M3481 series is a mask-ROM-programmed multi-instrument melody generator , implemented by CMOS technology. It is designed to play the melody according to the previously programmed information and is capable of generating 16 songs with 3 instrument effects : piano, organ and mandolin. The device a.

M3485 Datasheet (24.50 KB)

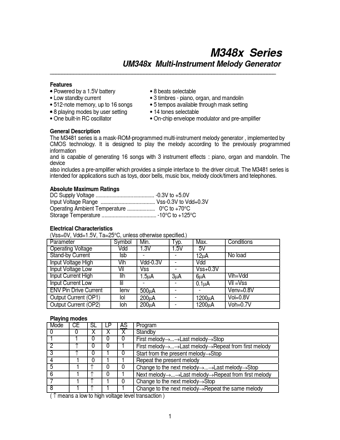

M3485 Datasheet Preview — Preview of M3485 PDF

Datasheet Details

Part number:

M3485

Manufacturer:

ETC

File Size:

24.50 KB

Description:

(m348x) multi-instrument melody generator.
